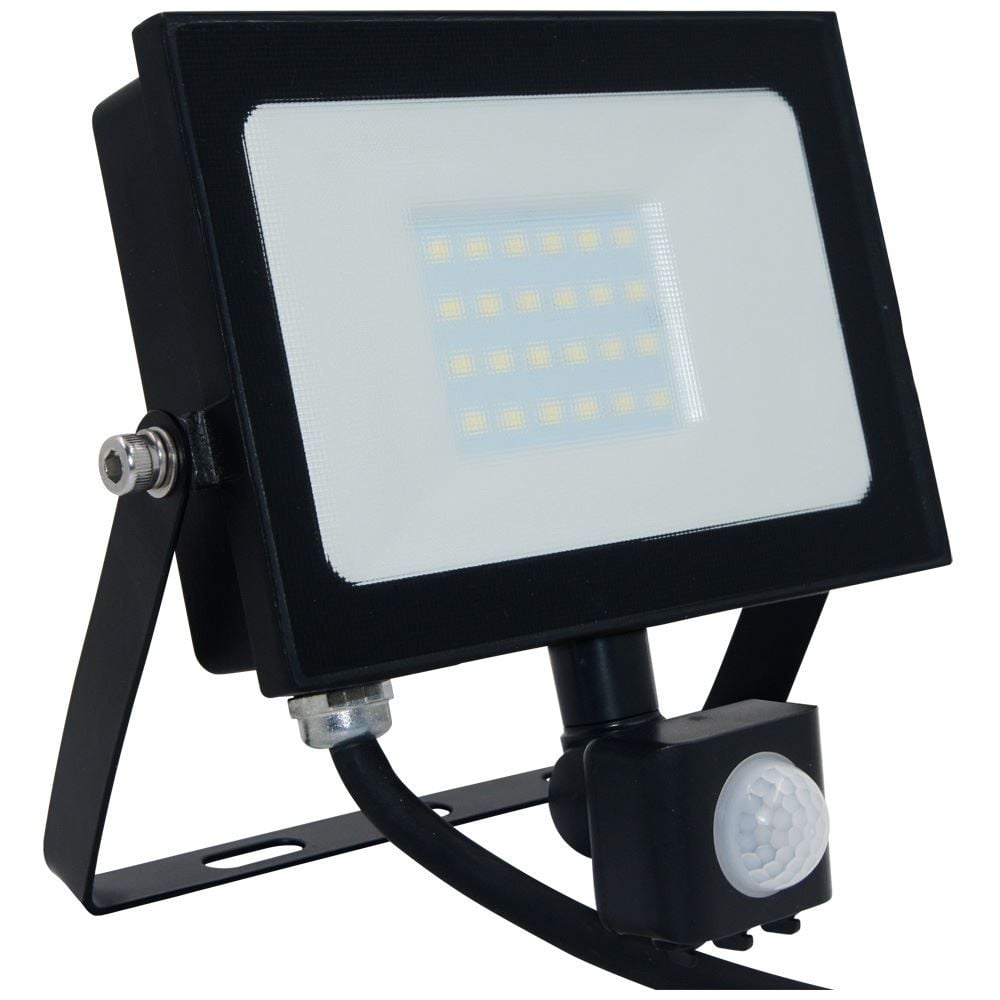

Atlas 20W IP66 Mini Floodlight Black with PIR 4000K

IP65 rated energy efficient integrated LED floodlight with slim profile and integrated IP66 rated PIR motion sensor and stem.

Features a diecast aluminium body with only 28mm depth (46mm inc PIR) and a standard black powder-coat finish.

-20°C to +40°C ambient operating temperature.

PIR sensor with 120° monitoring angle with controls for time, sensitivity and lux levels.

Fitted with a 80cm VDE cable.

Maximum detection range adjustable up to 8m.

Light hold after detection selectable from 10 seconds to 8 minutes.

• 30,000 hour life
• 15,000 switching cycles
• 110° beam angle
• 4000K cool white colour temperature
• Colour rendering index ≥70
• Not suitable for dimming
• IP65 rated for wet weather outdoor use
• Instant full light

Atlas mini instructions

Important Information:
Terminal block not included.
Installation may require advice from a qualified person.

Extra core becomes live when PIR activated which allows for multiple fittings to be controled by one PIR.
PIR Overide function - Turn on/off/on in rapid succession
